10 Ton Single - deck Laboratory Rubber / Plastic Hydraulic Hot Press Machine
Product introduction:
Suitable for rubber and plastic materials, pigments, oils, chemical materials, etc. Put each raw material in the mold, clamp it between the electric heating plate, apply appropriate pressure and temperature to shape the raw material for testing.
Main feature:
High-performance hydraulic system, with automatic pressure compensation function, can preset the time and pressure of the first pressurization and the second pressurization. High-precision, high-wear-resistant guide column, strong load force, stable lifting; imported technology is used to process electric heating plate materials, high temperature resistance, corrosion resistance, fast heat transfer, and no deformation. Humanized oil circuit design, when the instrument is in long-term protection When it is under pressure or non-working state, it will automatically enter the shutdown to maintain pressure or delay the shutdown, when the set time is reached, it will automatically pressurize or relieve pressure.
Technical Parameters:
| Capacity | 10~50ton ( Option ) |
| Temp. Range | Room temp. ～300℃ |
| Temp. Controller | LED Indicator,press key set input, the value indicate output |
| Timer | LED display,time range 0.1S～99min～9.9hr |
| Heating type | Electrical Heating module |
| Hot pressure plate | 300×300mm ( can be customized) |
| Cold pressure plate | 300×300mm ( can be customized) |
| Distance of pressure plate | 100mm |
| Pressure material | SKD chromium-molybdenum alloy |
| Pressure surface | Mirror chrome plated |
| Cooling temperature scope | Room temp. ～＋5℃ |
| Cooling type | Tap water cooling/compressor cooling water(optional) |
| Oil pressure system | The proportion hydraulic pressure current capacity loop circuit control |
| system, the GPY oil pump driver high performance electroencephalographic |
| matching high accuracy non resistance piston of oil cylinder carry |
| out constant speed rate control mode, can p reelection one, two |
| times pressure and time. |
| Oil cylinder stroke | Max 200mm |
| Oil cylinder speed | 11mm/s |
| Pressure gauge | 0～350kg/sq.cm |
| Power | 10.6HP |
| Dimension W×D×H | 1000×500×1500 mm |
| Power supply | 3∮,AC380V,20A |
| Weight | About 658kg |
Product Tags:
|
|

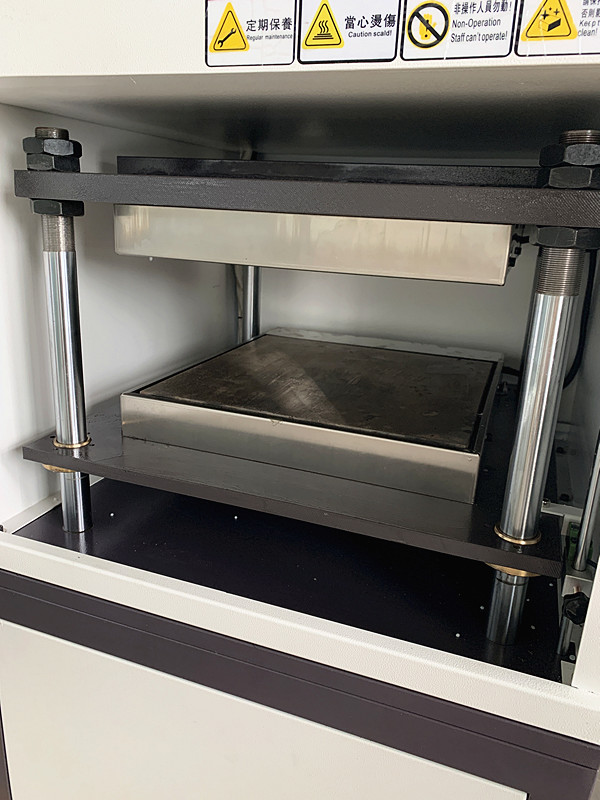

10 Ton Single - Deck Laboratory Rubber / Plastic Hydraulic Hot Press Machine Images
|
