Introduction

1. Machine Application

This machine is designed for packing fixed shaped materials into pillow packages, suitable for packing all kinds of regular shaped solid products, including mask,foodstuff, such as biscuits, breads, moon cakes, candies etc, commodities, industrial parts etc. For small pieces and separated articles, they should be put in to boxes or tied into blocks before this machine can be used to pack them, and this packing method is also applicable to pack other nonsolid products.

• Structural features

1) Dual frequency converter control, bag length is adjustable, no need to adjust idle running distance, adjustment can be make in one step, save time and film.

2) Text type human-machine interface, parameter setting is convenient and quick.

3) Problem self diagnose function, any trouble is clear at a glance.

4) Highly sensible photoelectric eye for color mark tracking, which makes sealing and cutting position more accurate.

5) Independent temperature PID control, more suitable for packing films of all kinds of materials.

6) Position fix stop function, free from cutter sticking and film waste.

7) Simple driving system, work is more reliable, and maintenance is more convenient.

8) All controls are carried out with software, it is convenient for function adjustment and upgrade, and it will never drop behind.

3. Machine outline and names for each part (see diagram 1)

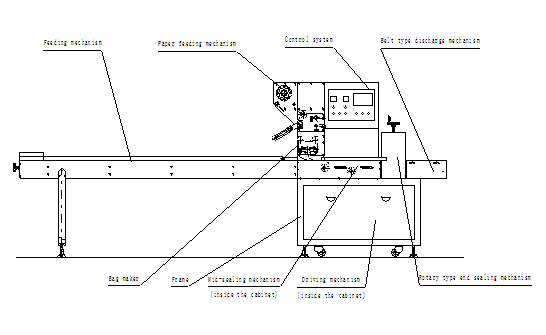

Diagram 1. Outline of Rotary type packing machine and the components

4. Positions and names of the adjusting components(see diagram 2)

Diagram 2. Positions and names of the adjusting components for Rotary type packing machine

5. Technical specification:

6.Environment conditions:

1) Temperature:Normal environment temperature should be within 5℃～40℃.

2) Humidity: 30%～90%.

3) Keep away from gasoline, chemicals, acid and alkali materials, explosives, and

combustibles.

4) Environment illumination: Above 300 LUX

5) Keep away from direct sunlight

6) Keep away from vibrating machines.

7) Avoid direct fan blowing.

7. List of accessories & tools:

A.Fittings

1. Push block nylon, 10 pieces, or stainless steel, 5 pieces

2. End-sealing cutter 1 pair

3. Mid-sealing drive belt 1 piece

4. Mid-sealing electric heating tube 2 pieces 110V 200W

5. End-sealing electric heating tube 2 pieces 110V 250W

6. Power cord 5 meters

B.Tools

1. Monkey wrench 1 piece

2. Hexagon ring spanner 1 set

3. “-” type screw driver 1 piece

4. “+” type screw driver 1 piece
